Venturi Wet Scrubber
Simple in Design, Yet Highly Efficient.
Sly Venturi Scrubber
The Sly Venturi scrubber efficiently collects fine particulate and mists. Scrubbing liquid is atomized into fine droplets that entrap particles. Adjustable throats for efficiency optimization are standard—capacities to 76,000+ CFM per unit.
The Sly Venturi Scrubber serves the industry in several ways. It removes pollutants present in process gas streams, including hazardous and nuisance dust, fumes, and mists from stack gases. By cleaning process gas streams to remove oils, dust, and other particulates, this scrubber allows the industry to recycle these gases as fuels or process raw materials. Finally, the Sly Venturi Scrubber allows the reclaim of valuable materials, which can lead to significant process savings.
Venturi Scrubber Principles: How They Work

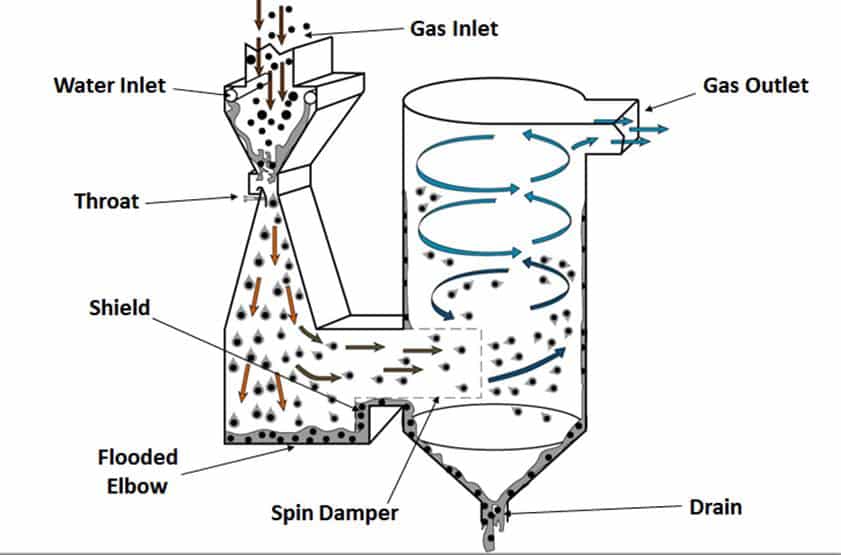

The Venturi Scrubber uses the differential between high-velocity gases and free-flowing water to create droplets that entrap contaminants, hold them in suspension, and deliver them as a highly concentrated slurry. The Sly Venturi Scrubber offers more advantages in separating and recovering liquid mists and ultra-fine particulates than other gas cleaning methods.
Simple in design yet highly efficient, this Sly Venturi Scrubber incorporates features calculated to maximize collection efficiency while minimizing operating and maintenance costs. An adjustable pressure drop provision and energy regain feature are critical in rising energy costs, combining to reduce power consumption and operating costs.
Request a Quote
Features & Benefits
- Can help to recycle gases as fuel or process raw materials
- Reclaim valuable materials- resulting in significant savings
- Minimizes operating costs
- Adjustable pressure drop provision
- Reduces power consumption
Options
- Easily adjustable throat permits setting pressure for maximum efficiency. Can be fine-tuned to application while scrubber is running. Throat Damper blased are readily replaceable.
- Variable-spin damper in separator maintains proper velocity for collection of fine droplets.
- Removable scrubbing liquid piping- no nozzles to wear or plug.
- Access door permits inspection of flooded elbow and spin damper.
- Simple open design has low potential for buildup and pluggage.
- Temperature and corrosion resistant construction is available.
- Can employ a high concentration slurry as scrubbing liquid

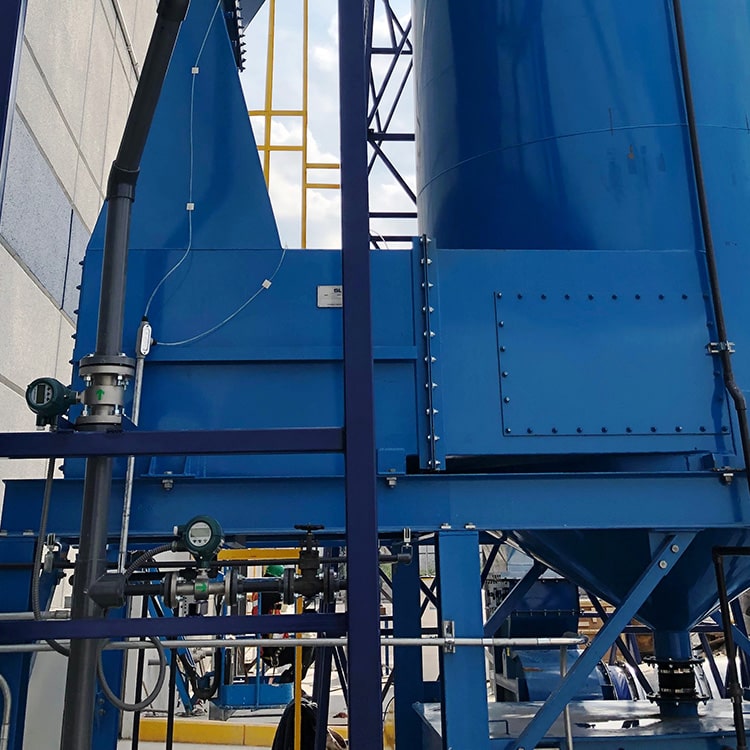

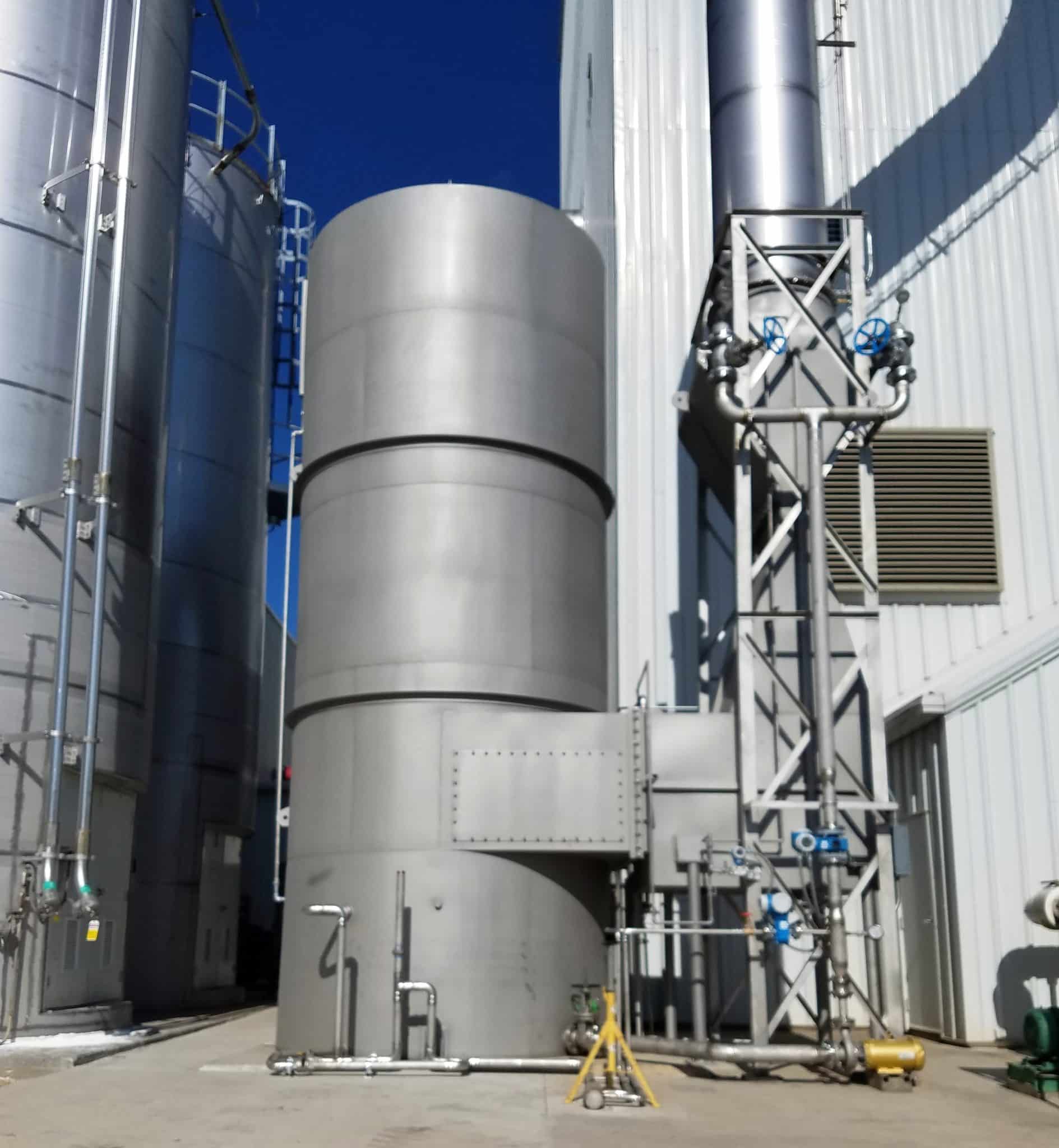

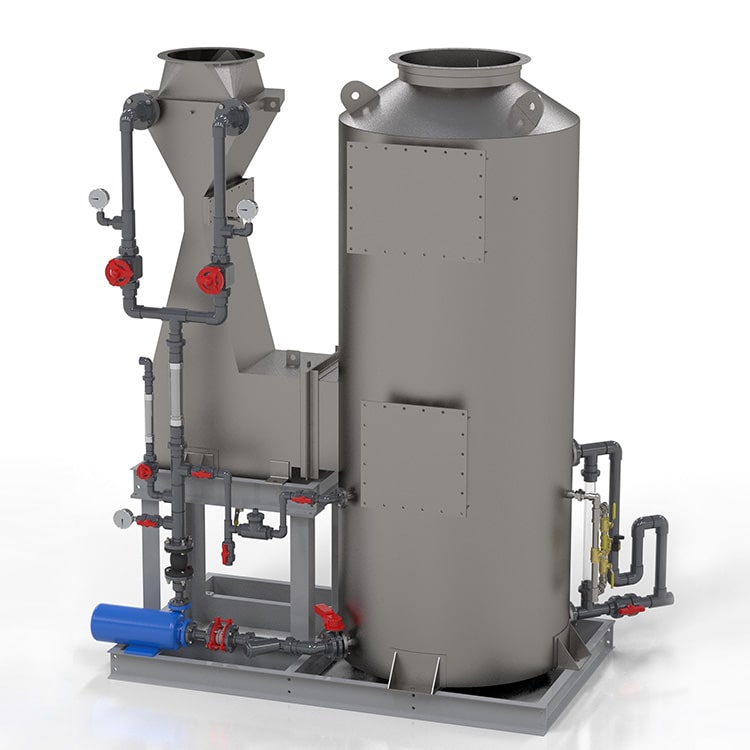

Sly Venturi Wet Scrubbers
Venturi Scrubber Sizing & Dimensions
SLY, LLC.’s Venturi wet scrubbers are available in a variety of sizes and dimensions to suit your specific application. Use this diagram and table to find the specs and sizing you need, or contact us with any questions you may have. We also offer OEM manufacturing and custom solutions to suit any project!
| Nominal Capacity Sat. CFM | Inlet & Outlet A | Sep. Dia. B | Sep. C1 | Vent C2 | Vent C3 | Sep C4 | Overall Width D | Venturi Width E | Sep. Cone F | Drain Pipe G | Water Pipe H | Venturi Depth J | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.5 | 1,500/2,600 | 10×10 | 2′-2″ | 4′-4″ | 5′-8″ | 6′-0″ | 5′-2″ | 5′-6″ | 2′-4″ | 10″ | 2″ | 2″ | 11″ |
| 1 | 2,600/3,600 | 13×13 | 3′-8″ | 6′-6″ | 6′-6″ | 7′-3″ | 7′-10″ | 6′-8″ | 2′-4″ | 1′-4″ | 3″ | 2″ | 1′-5″ |
| 2 | 3,600/4,700 | 15×15 | 4′-1″ | 7′-2″ | 6′-9″ | 7′-7″ | 8′-7″ | 7′-3″ | 2′-6″ | 1′-5″ | 4″ | 2″ | 1′-5″ |
| 3 | 4,700/6,300 | 17×17 | 4′-8″ | 8′-2″ | 7′-3″ | 8′-3″ | 9′-9″ | 8′ | 2′-11″ | 1′-7″ | 4″ | 2″ | 1′-9″ |
| 4 | 6,300/8,500 | 20×20 | 5′-3″ | 9′-1″ | 7′-9″ | 8′-11″ | 10′-10″ | 8′-11″ | 3′-2″ | 1′-9″ | 4″ | 2″ | 1′-9″ |
| 5 | 8,500/11,500 | 23×23 | 5′-11″ | 10′-4″ | 8′-10″ | 10′-2″ | 12′-4″ | 9′-11″ | 3′-7″ | 2′ | 6″ | 3″ | 2′-4″ |
| 6 | 11,500/15,000 | 26×26 | 6′-7″ | 12′-1″ | 9′-7″ | 11′-1″ | 14′-3″ | 11′ | 3′-11″ | 2′-2″ | 6″ | 3″ | 2′-4″ |
| 7 | 15,000/20,000 | 30×30 | 7′-5″ | 14′-1″ | 11′-4″ | 13′-1″ | 16′-6″ | 12′-6″ | 4′-9″ | 2′-5″ | 6″ | 4″ | 3′-1″ |
| 8 | 20,000/27,000 | 35×35 | 8′-4″ | 16′-5″ | 11′-11″ | 14′-2″ | 19′-3″ | 13′-8″ | 5′-1″ | 2′-10″ | 8″ | 4″ | 3′-1″ |
| 9 | 27,000/36,000 | 40×40 | 9′-4″ | 19′-0″ | 14′-7″ | 16′-11″ | 21′-11″ | 15′-8″ | 6′-1″ | 2′-11″ | 8″ | 4″ | 4′-5″ |
| 10 | 36,000/48,000 | 46×46 | 10′-6″ | 22′-1″ | 15′-4″ | 18′-1″ | 25′-5″ | 17′-3″ | 6′-6″ | 3′-4″ | 10″ | 6″ | 4′-5″ |
| 11 | 48,000/60,000 | 52×52 | 11′-10″ | 25′-7″ | 17′-6″ | 20′-7″ | 29′-3″ | 19′-4″ | 7′-5″ | 3′-8″ | 10″ | 6″ | 5′-10″ |
| 12 | 60,000/76,000 | 58×58 | 13′-4″ | 28′-5″ | 17′-7″ | 20′-9″ | 32′-7″ | 21′-1″ | 7′-5″ | 4′-2″ | 12″ | 6″ | 6′-6″ |
