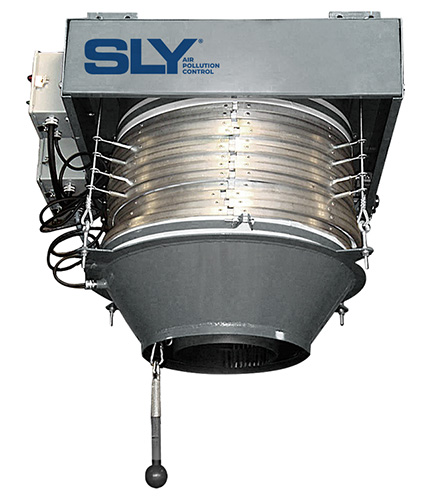

Industrial Bulk Solids Loading Spouts

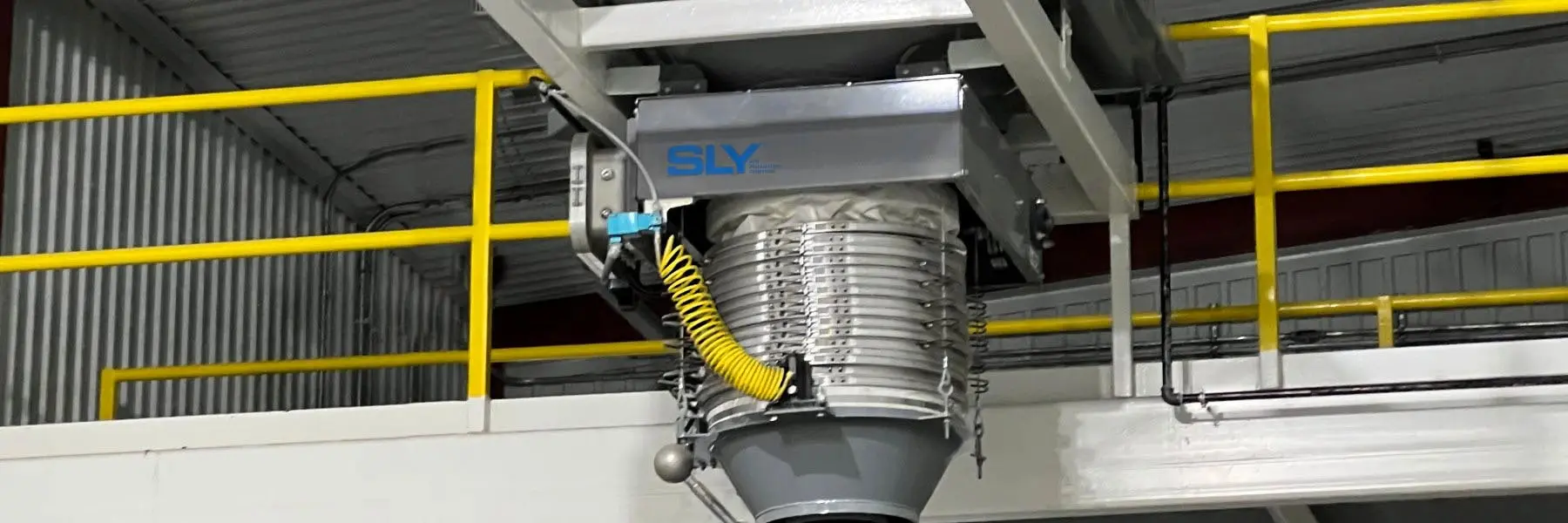

Whether you’re loading or stacking bulk materials, Sly makes a spout that will handle any dry material you need to move. Sly spouts are ideal for radial stacking or loading into railroad cars, trucks, ships, barges, containers and barrels. Sly bulk material loading spouts let you move powdered chemicals, cements, grain products, sand, gravel, coal or any other dry bulk material–without dust.
Request a Quote
Features & Benefits
- Four cable hoist drive offers enhanced stability and improved cable service over traditional two and three cable hoist drives
- Center mounted motor constructed from A36 mild steel is positioned beneath the main pan housing for protection from environmental elements
- Computer numerical control machined pulleys with rounded edges and precision cable grooves for long-lasting durability
- Low profile inner support rings and extruded outer support rings fastened with high performance clamping versus traditional fastening using nuts, bolts, screws or rivets
- Internal cone design allows cones to stack as the spout retracts to a low profile for maximum overhead clearance
- Outer sleeve encompasses the spout’s internal stacking cones and contains fugitive dust generated during the loading process
Options
- Outer sleeves material options include Vinyl (PVC)-coated polyester (18 & 22 oz.), Hypalon synthetic rubber -40° F – 220° F | -40° C – 105° C, Silicone fiberglass for high temperature materials, and Neoprene Polyester (ATEX)
- Steel pegs in lieu of standard u-bolt and nut harness guides for food applications
- Available in a variety of sizes
- 3 Motor Voltage Options (400 volt/50 hertz, 460 volt/60 hertz, 575 volt/60 hertz)
Have a Legacy Loading Spout unit and need support?
Please contact us with any questions, parts or service requests, or other inquiries related to Sly Legacy Loading Spouts.
Downloads
FAQs – Industrial Bulk Solids Loading Spouts
What are industrial bulk solids loading spouts used for?
Bulk solids loading spouts are used to transfer powders and granular materials (such as cement, sand, grain, limestone, and chemicals) into trucks, railcars, barges, or containers with minimal dust emission. They help control fugitive dust, improve housekeeping, and support compliance with air quality standards.
How do Sly’s loading spouts reduce dust during material transfer?
Sly spouts incorporate a sealed sleeve system that captures dust at the drop point. The sleeve closes around the receiving vessel, reducing air turbulence and preventing material escape. Heavy-duty hoists and support rings maintain consistent alignment, even under harsh conditions.
What types of materials can be handled with these spouts?
Sly loading spouts handle a wide range of dry solids, including:
- Powders and dusts
- Aggregates (sand, gravel)
- Cement and mineral products
- Grain and agricultural products
- Chemical powders
- Different sleeve materials (PVC, Hypalon, silicone-fiberglass, neoprene) can be selected based on temperature, abrasion, and chemical exposure.
Are Sly’s loading spouts customizable?
Yes. We offer multiple options, including sleeve materials, hoist configurations, size ranges, and motor voltages. This ensures the system matches your facility layout, transfer height, and environmental conditions.
Do loading spouts help improve regulatory compliance?
Absolutely. By reducing fugitive dust emissions during loading, these systems help facilities maintain compliance with OSHA and EPA standards, support safer working environments, and minimize cleanup costs.
How do I determine the right loading spout for my application?
Consider material characteristics (e.g., particle size, abrasiveness), transfer height, enclosure type, and environmental factors such as temperature and moisture. Sly’s engineers can analyze your process and recommend the right spout size, sleeve material, and configuration – or provide a custom quote tailored to your site.
